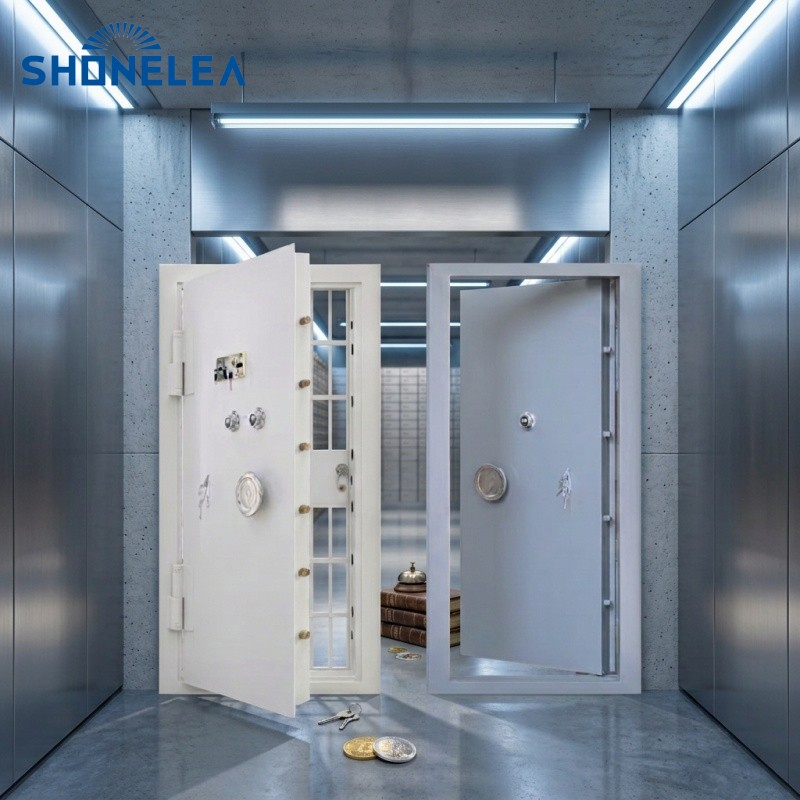

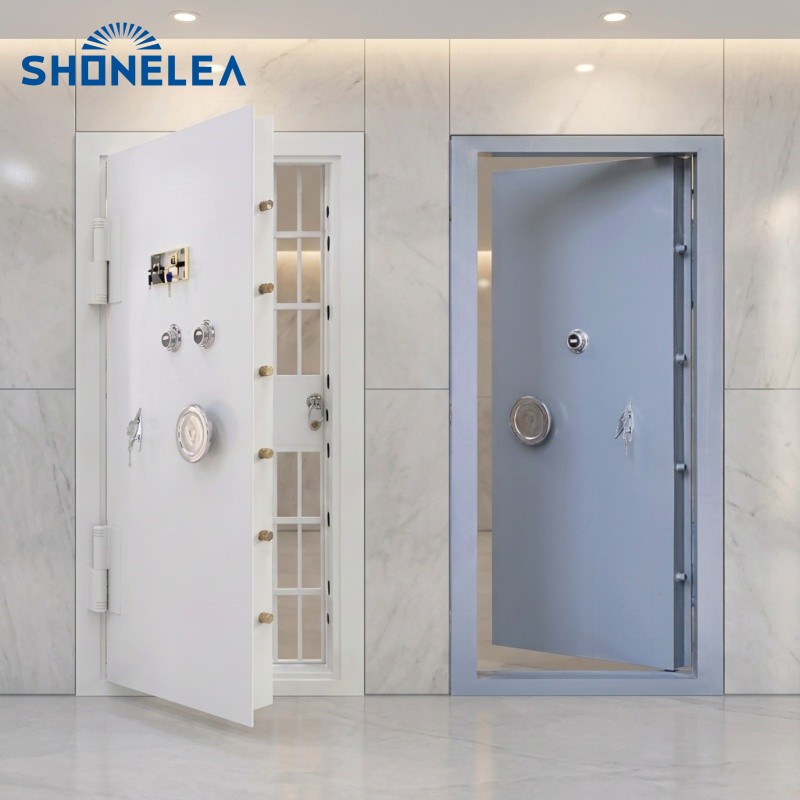

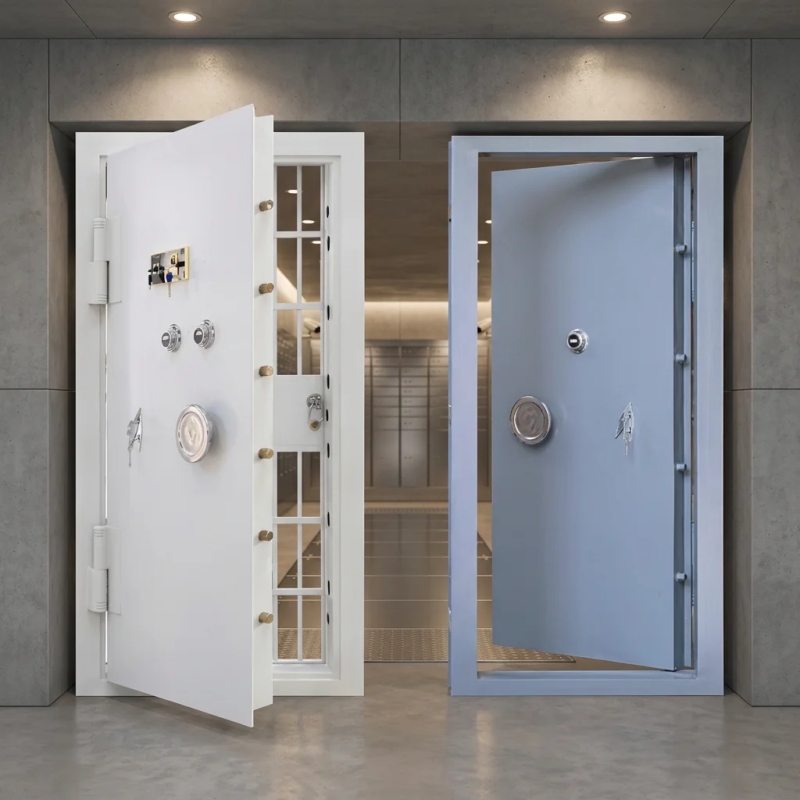

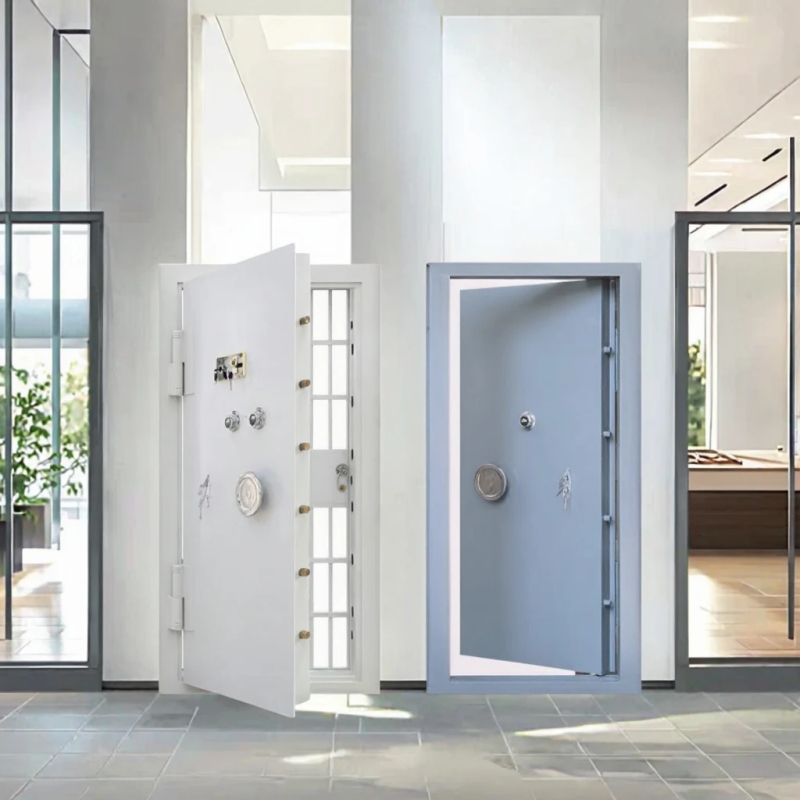

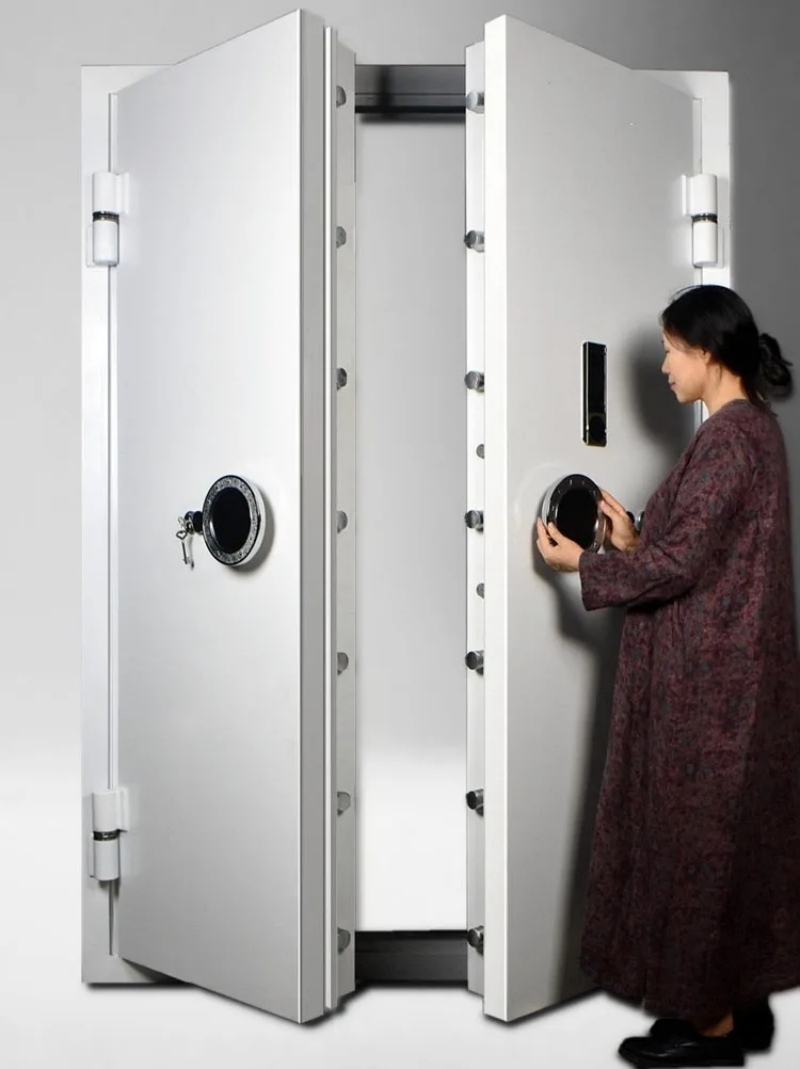

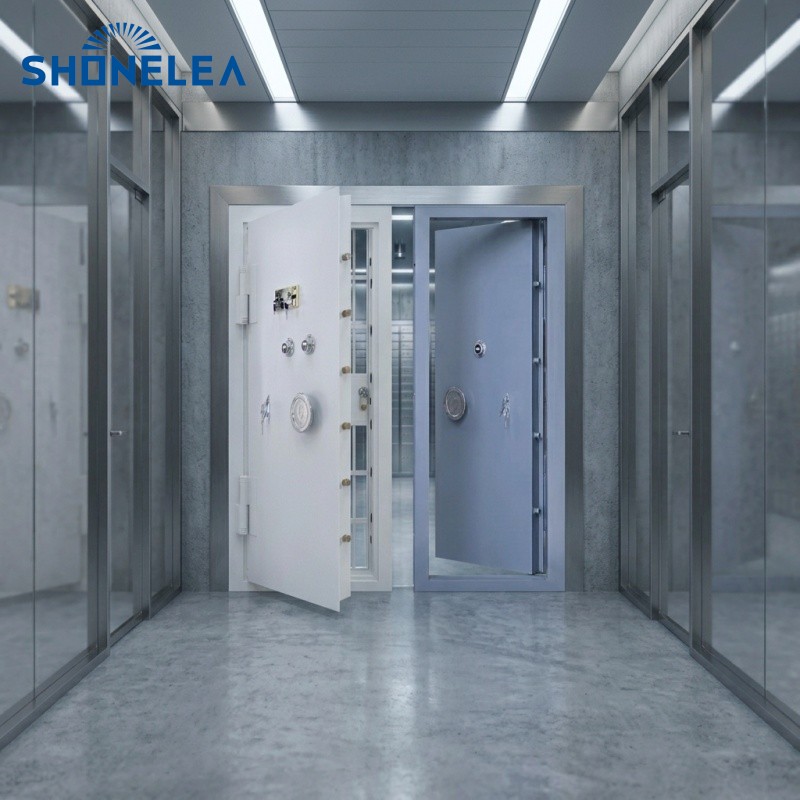

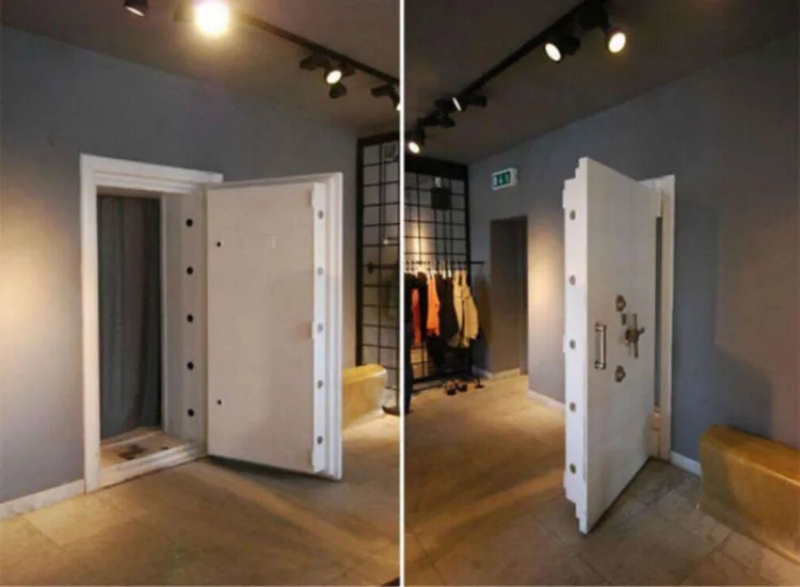

Commercial Armored Vault Door: High-Security Modular Steel Barrier with Multi-Locking System

Developed to exceed international physical security thresholds, our heavy-duty vault door is designed for financial centers, government document repositories, precious mineral storage, and private panic bunkers. The door leaf features a laminated defense structure consisting of structural alloy steel, carbide anti-drill barriers, and refractory composite materials. This specialized composite engineering resists diamond-core drills, high-pressure hydraulic cutters, explosive impacts, and oxy-acetylene torching, maintaining integrity under intense assault.

The locking perimeter integrates a heavy-duty mechanical transmission system that drives massive solid steel locking pins horizontally and vertically deep into the structural door frame. Redundant locking options—including dual mechanical combination dials, certified high-security key cylinders, and optional electronic biometric modules—enforce strict dual-custody authorization protocols. To ensure occupant safety during extreme situations, every unit is equipped with a failsafe internal release lever and a precision-balanced adjustable hinge system that allows effortlessly smooth movement of multi-ton steel slabs.

Features of the Vault Door:

1.Multi-Layer Armored Composite Construction: Fabricated with laminated high-strength alloy plates and anti-drilling carbide barriers that prevent mechanical penetration and tool attacks.

2.Torch & Thermal Resistant Core: Integrated with specialized refractory and thermal-barrier materials that dissipate intense heat from torching and thermal lances.

3.Heavy-Duty Omnidirectional Locking Bolts: Deploys massive, hardened solid steel deadbolts across all frame perimeters to interlock the door slab completely into the frame.

4.Dual-Custody Lock Control: Supports dual independent locks (mechanical combination, key, or biometrics) requiring two authorized persons to unlock simultaneously.

5.Anti-Explosive Relocking Device: Built with spring-loaded glass/mechanical re-lockers that permanently trigger extra internal deadbolts if tampering or blasting is detected.

6.Precision Engineered Load-Bearing Hinges: Heavy-duty industrial pivot hinges distribute massive weight evenly, allowing smooth, effortless manual operation of heavy doors.

7.Internal Emergency Escape Lever: Features a dedicated internal escape device that allows trapped personnel to release the door from inside without keys in an emergency.

8.Integrated Gasket Environmental Sealing: High-grade intumescent perimeter gaskets expand under heat to block toxic smoke, water, and hot gases from entering the vault chamber.

9.Seamless Embedded Frame Anchorage: Heavy-gauge steel frame with welded structural anchor ties ensures deep, seamless integration into reinforced concrete walls.

10.Full OEM/ODM Dimensional Customization: Available in custom clear-opening dimensions, stainless steel decorative facings, and customized day-gate grilles to suit diverse architectural specs.

Package Contents

1 x Pre-Assembled Heavy-Duty Armored Vault Door & Frame Assembly

2 x Sets of High-Security Master Keys & Dual Change Keys

1 x Internal Emergency Exit Mechanism Kit

1 x Heavy-Duty Concrete Foundation Anchoring Hardware Pack

1 x Engineering Installation Blueprint & Torque Specification Guide

1 x Operations, Dual-Custody Management & Maintenance Manual

FAQ

Q1: What physical threats is this vault door specifically engineered to resist?

A: This door is built to counter multiple aggressive burglary methods, including high-speed drilling, sledgehammering, hydraulic wedge spreading, oxy-acetylene torching, and localized explosive detonations, meeting high-level commercial vault standards.

Q2: What is a "Dual-Custody" locking system and how does it improve security?

A: Dual-custody requires two separate authorized users to input their respective keys, dials, or codes before the door can open. This eliminates internal theft risks and ensures no single individual can access the secured area alone.

Q3: What happens if an attacker attempts to burn or punch through the locks?

A: The door incorporates independent, spring-loaded internal glass/thermal relockers. If thermal cutting or physical impact fractures the relock trigger plate, deadlocks instantly fire into the surrounding frame, permanently sealing the door shut even if the external locks are destroyed.

Q4: Can a person accidentally get locked inside the vault room?

A: No. Every vault door includes a dedicated interior mechanical safety release handle that overrides the primary locks from the inside without requiring passwords or external intervention, guaranteeing safe exit.

Q5: How is this heavy vault door shipped and installed on-site?

A: Due to the significant weight, the unit is packed on reinforced steel-framed export pallets with heavy crating. On-site installation involves setting the pre-assembled frame into the structural concrete wall opening and securing it with welded structural anchors and non-shrink grouting.
